LogicGenerator Class Reference
[Logic minigame]

#include <logicgenerator.h>

Inherits LogicComponent.

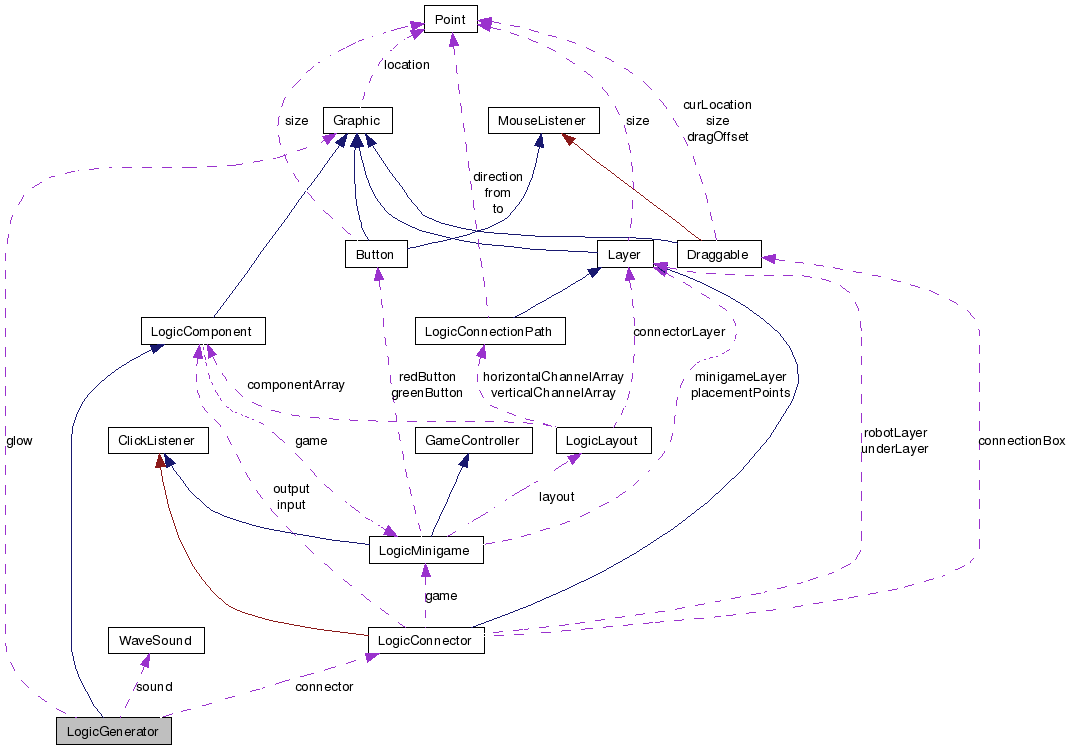

Collaboration diagram for LogicGenerator:

[legend]

List of all members.

Public Member Functions
	LogicGenerator ()
	LogicGenerator (LogicMinigame *game, Point p)
	LogicGenerator (LogicMinigame *game, int x, int y)
	~LogicGenerator ()
Point	inpoint (int slot)
	Returns a value for slot = 0; OFFSCREEN otherwise.
void	addConnector (LogicConnector *connector)
	LogicGenerator accepts no inputs.
void	removeConnector (int slot)
	LogicGenerator accepts no inputs.
LogicConnector *	getConnector ()
	Returns this generator's output connector.
int	nextSlot ()
	LogicGenerator accepts no inputs.
void	addToQueue (int truth)
void	releaseFromQueue ()
void	clear ()
void	draw (BITMAP *canvas, Point offset)
	This is the main reason for this class.
Protected Member Functions
void	updateColors ()
	Changes the look of this generator.
void	init ()
Protected Attributes
std::deque< int >	queue
	The robots to be released.
int	colors [4]
WaveSound *	sound
LogicConnector *	connector
Graphic *	glow

---

Constructor & Destructor Documentation

LogicGenerator::LogicGenerator

(

)

LogicGenerator::LogicGenerator	(	LogicMinigame *	game,
		Point	p
	)

LogicGenerator::LogicGenerator	(	LogicMinigame *	game,
		int	x,
		int	y
	)

LogicGenerator::~LogicGenerator

(

)

---

Member Function Documentation

void LogicGenerator::addConnector

(

LogicConnector *

connector

)

[inline, virtual]

LogicGenerator accepts no inputs.

Implements LogicComponent.

void LogicGenerator::addToQueue

(

int

truth

)

void LogicGenerator::clear

(

)

void LogicGenerator::draw	(	BITMAP *	canvas,
		Point	offset
	)			[virtual]

This is the main reason for this class.

Implements Graphic.

LogicConnector * LogicGenerator::getConnector

(

)

[virtual]

Returns this generator's output connector.

Implements LogicComponent.

void LogicGenerator::init

(

)

[protected]

Point LogicGenerator::inpoint

(

int

slot

)

[virtual]

Returns a value for slot = 0; OFFSCREEN otherwise.

Implements LogicComponent.

int LogicGenerator::nextSlot

(

)

[inline, virtual]

LogicGenerator accepts no inputs.

Implements LogicComponent.

void LogicGenerator::releaseFromQueue

(

)

void LogicGenerator::removeConnector

(

int

slot

)

[inline, virtual]

LogicGenerator accepts no inputs.

Implements LogicComponent.

void LogicGenerator::updateColors

(

)

[protected]

Changes the look of this generator.

---

Member Data Documentation

int LogicGenerator::colors[4] [protected]

LogicConnector* LogicGenerator::connector [protected]

Graphic* LogicGenerator::glow [protected]

std::deque<int> LogicGenerator::queue [protected]

The robots to be released.

WaveSound* LogicGenerator::sound [protected]

---

The documentation for this class was generated from the following files:

• Comps/LearningGaming/LogicMinigame/logicgenerator.h
• Comps/LearningGaming/LogicMinigame/logicgenerator.cpp
